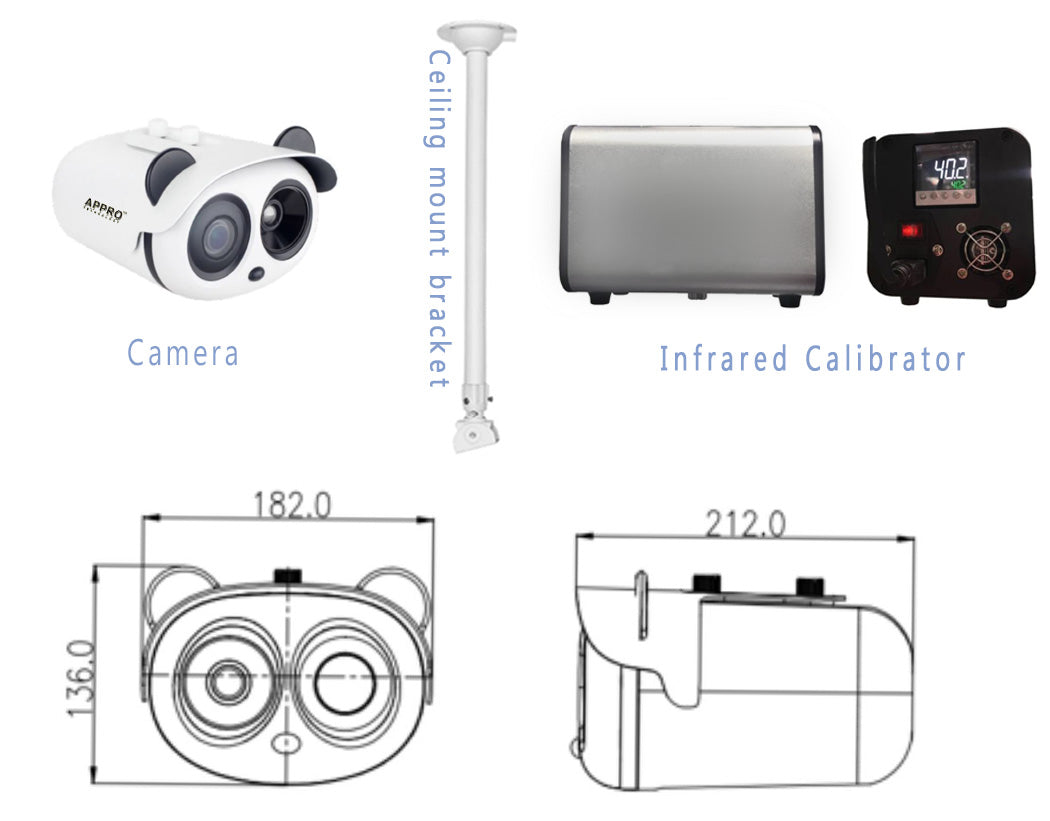

SVD-TC-200 Temperature Detection Camera
Features
- On-board temp-detection algorithm
- One IP address two channels
- Standard Image: 2 Megapixel (1920 x 1080) Resolution
Thermal Image: Effective pixels 400×300 - Sensitivity 40mK
- Thermal: 8mm Fixed lens, Visible: 2.7-12mm motorized lens
- Accuracy within 0.54°F (0.3°C)
- Body detection, up to 16 Targets
- Response Time 30ms
- 17 color control
Thermal Camera |
SVD-TC-200 |
|
Detector Type |
Uncooled IRFPA Microbolometer |
|
Effective Pixels |
400(H) ×300(V) |
|
Pixel Size |
17um |
|
Thermal Sensitivity (NETD) |
40mK @F1.0, 300K |
|
Spectral Range |
8~14um |
|
Image Setting |
Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI |
|
Color Palettes |
Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes |
Thermal Lens |
|
|
Lens Type |
Fixed |
|
Focus Control |
Manual Focus |
|
Focal Length |
8mm |
|
F No. |
F1.0 |
|
Angle of View |
H: 46°, V:35.3° |
Visible Camera |
|
|
Image Sensor |
1/1.9" Sony CMOS |
|
Effective Resolution |
1920(H)×1080(V) |
|
Shutter Speed |
1/50 ~ 1/64,000s |
|
Wide Dynamic Range |
True WDR 120dB |
|
Min. Illumination |
Color: 0.01Lux @(F1.2, AGC ON) |
|
|
B/W: 0.001Lux @(F1.2, AGC ON) |
|
S/N Ratio |
More than 55dB |
|
Focal Length |
2.7 ~ 12mm |
|
Max Aperture |
F1.6~ F2.9 |
|
Angle of View |
105°~ 32° |
|
Focus Control |
Motorized |
DISCLAIMER: SVD products are not medical devices and cannot diagnose coronavirus infection. When configured correctly, the SVD products discussed here can identify individuals showing higher than average temperature relative to a sample population. Only a licensed medical professional can determine if a “hot” individual is experiencing an abnormal medical condition.
