SecurityVideoDirect dedicated to provide the best product for your home/office surveillance system at reasonable price. Our professional customer support team will help you with your installation process.
Our new STD8700 series professional surveillance DVR gives you a whole new experience of surveillance video recording. With the internet connection, you can stay connected anywhere, anytime, at home or on the go, through your PC, MAC, Smartphone or Tablet.
Features:
- 16-Channel Surveillance DVR. Support up to 8 HD-TVI/Analog High Definition camera. Standard H.264 Video Compression with low bit rate and better image quality.
- View live or playback on your smartphone (iPhone/ Android Phone) and 4 major web browsers ( IE / Firefox / Safari / Chrome).
- Pre-installed Western Digital Surveillance 1TB／2TB hard drive for Continuous Recording. (2 SATA interfaces)
- Longer recording available with Pre-Alarm recording and Motion Detection. Dual-stream: network video and local recording. Support HDMI & VGA video output. (1920x1080/60Hz, 1280x1024/60 Hz, 1024x720/60Hz, 1024x768/60Hz)
- 1 Year Manufacture Warranty. Professional customer support team. Do not hesitate to contact us if you have any questions. 9 a.m. - 5 p.m. (PDT)

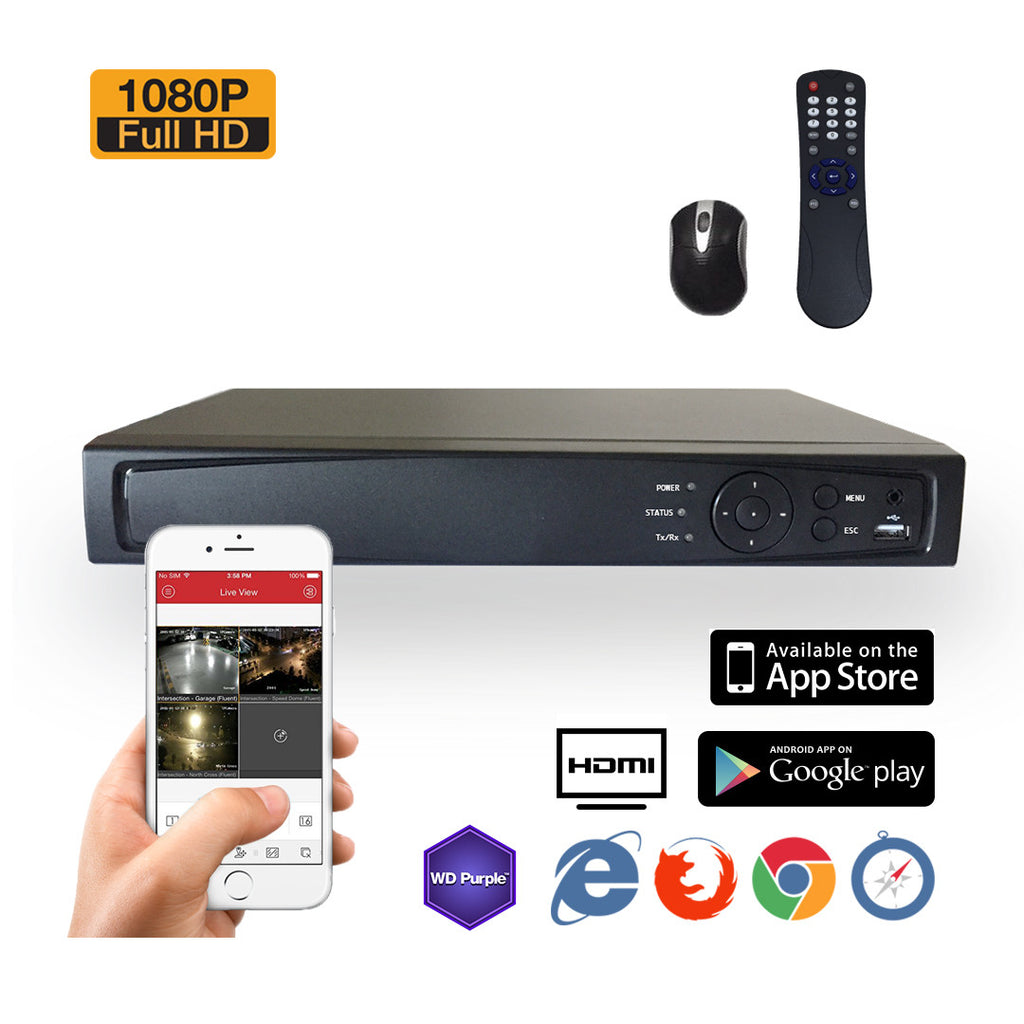

What’s include:
- STD8716 Digital Video Recorder
- Choice of 1 or 2 TB Western Digital purple hard drive pre-installed
- Remote control
- USB mouse
- One year warranty and 100% satisfaction customer tech support
STD8716 Specification
Video/Audio input
Video compression: H.264
Analog and HD-TVI Video input: 16-CH BNC interface(1.0Vp-p, 75Ω)
Supported camera types: 720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, CVBS
IP video input: 3-CH Upto 2MP resolution
Audio Compression: G.71 lu
Audio input: 1-ch, RCA(2.0 Vp-p, 1 KΩ)
Two-way audio in: 1-ch, RCA(2.0 Vp-p, 1 KΩ)
Video/ Audio output
HDMI/VGA output: 1920x1080/60Hz, 1280x1024/60 Hz, 1024x720/60Hz, 1024x768/60Hz
Encoding resolution: Main stream: 1080P(non-real-time)/720P/ WD1/ VGA/ 4CIF/ CIF
Sub-stream: WD1(non-real-time)/ 4CIF(non-real-time)/ CIF/ QCIF/ QVGA
Frame rate: Main stream: 1/16 fps~ Real time frame rate
Sub-stream:1/16 fps~ Real time frame rate
Video bitrate: 64 Kbps
Dual-stream: Support
Stream type: Video, Video & Audio
Synchronous playback: 16-CH
Playback resolution: 1080P/ 720P/ VGA/ WD1/ 4CIF/ CIF/ QVGA/ QCIF
Network management
Remote connection: 128
Network protocols: TCP/IP, PPPoE, DHCP, Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
Type: 4 SATA interfaces for 4 HDDS; 1eSATA interface
Capatity: Up to 4TB capacity for each disk

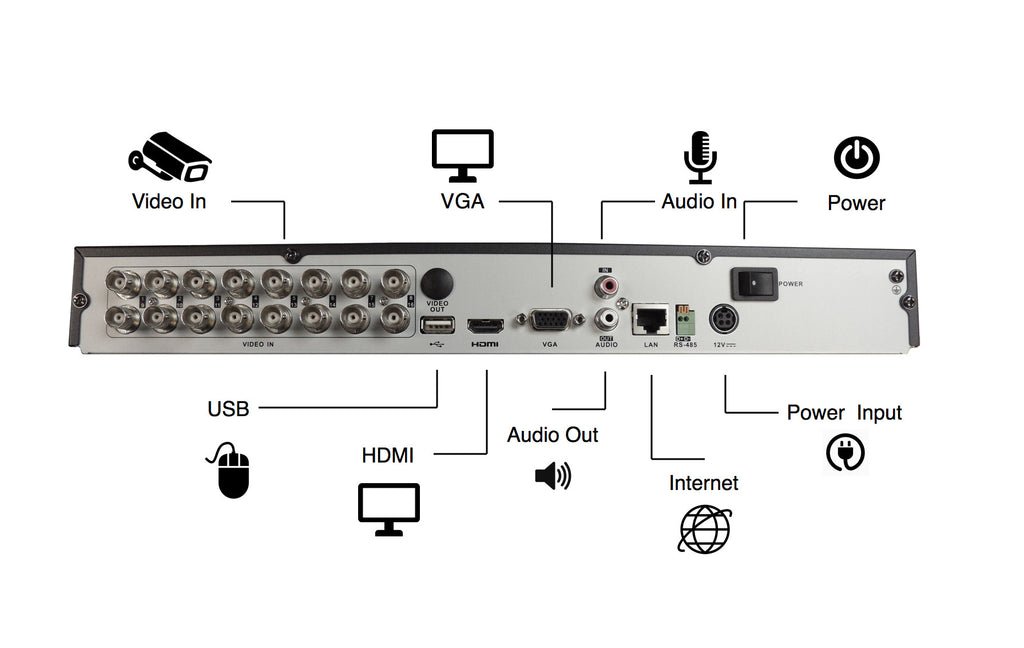

External interface
Network interface: 1;10M/100M/1000M self-adaptive Ethernet interface
Serial interface: RS-232, RS-485, Keyboard
USB port: USB 2.0
Alarm in/out 16/4
General
Power supply: 12V DC
Consumption(without HDD): ≤30W
Working temperature: 14℉ ~ 131℉
Chassis: 380 1U chassis
Dimensions(WxDxH): 15x11.4x1.9 inch
